Nitrox MOD Calculator: Maximum Operating Depth

Maximum operating depth is the deepest you can take a given breathing gas before its oxygen partial pressure exceeds the limit you have chosen. It is the single most important number attached to a nitrox fill, and unlike almost everything else in dive planning it is a hard ceiling rather than a guideline, because the failure mode is a convulsion underwater rather than a headache on the boat.

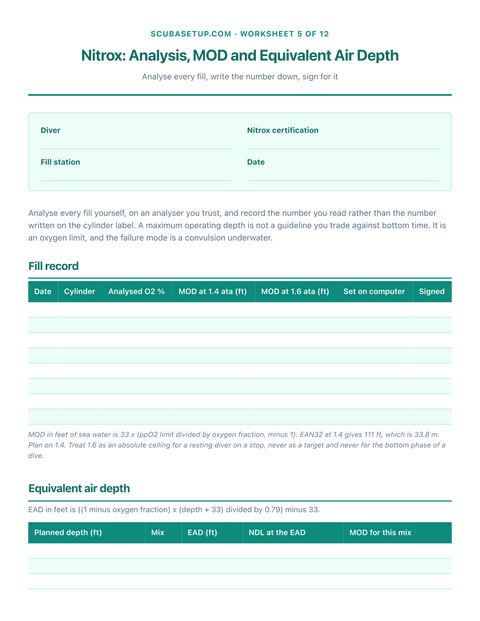

The calculation below is only as good as the oxygen fraction you feed it, and the only trustworthy source for that number is your own reading off an oxygen analyser at the fill station. The label on the cylinder records an intention. The analyser records a fact. Your computer also needs the same figure set correctly before the dive: a Shearwater Peregrine or any other nitrox capable unit will happily run air calculations on a nitrox fill if you never told it otherwise.

What is maximum operating depth?

Maximum operating depth is the deepest point at which a given breathing gas keeps its oxygen partial pressure at or below a chosen limit. Oxygen is toxic to the central nervous system at raised partial pressure, and because pressure rises with depth, a mix that is entirely benign at 60 feet becomes dangerous at 150.

The mechanism is simply the gas laws. Oxygen partial pressure is the oxygen fraction multiplied by ambient pressure in atmospheres absolute. Air at the surface is 0.21 times 1, so 0.21 ata. The same air at 132 feet is 0.21 times 5, so 1.05 ata. EAN36 at 132 feet is 0.36 times 5, which is 1.8 ata and well past any acceptable limit.

What is the MOD formula?

MOD (fsw) = 33 x ((ppO2 limit / FO2) - 1)
MOD (m) = 10 x ((ppO2 limit / FO2) - 1)

Work EAN32 at the 1.4 limit all the way through. 1.4 divided by 0.32 is 4.375. That is the ambient pressure in atmospheres at which the limit is reached. Subtract 1 to convert absolute pressure back to gauge pressure, giving 3.375 atmospheres of water. Multiply by 33 feet of sea water per atmosphere and you get 111 feet, or in metres, multiply by 10 for 33.8 metres.

The step people drop is the subtraction of 1. Forgetting it produces 144 feet instead of 111, an error of 33 feet in the dangerous direction, and it is a common enough mistake that it is worth writing the intermediate value down when you work these by hand. If your answer is exactly 33 feet deeper than it should be, that is the missing step.

Why is 1.4 ata the working limit?

Central nervous system oxygen toxicity does not announce itself. The classic warning signs (visual disturbance, ear ringing, nausea, twitching, irritability, dizziness) are unreliable in the sense that a convulsion can arrive without any of them, and a convulsion underwater means the regulator leaves the mouth. In open water, at depth, that is usually fatal regardless of how good your buddy is.

Susceptibility also varies. It varies between people, it varies in the same person from day to day, and it rises with exertion, cold and carbon dioxide retention, none of which you can measure at depth. The 1.4 figure is a working margin against that uncertainty rather than a line where something switches on.

The 1.6 figure exists for a specific, narrow use: a diver at rest on a decompression stop, breathing a rich gas, doing nothing. Treating it as a planning target on the bottom phase of a dive removes the entire margin the 1.4 limit was there to provide. Plan on 1.4, and if the dive you want needs a deeper number than 1.4 allows, change the mix rather than the limit.

How do you pick the best mix for a planned depth?

Run the formula backwards. The richest mix you can safely breathe at a given depth is the partial pressure limit divided by the ambient pressure at that depth.

Best mix FO2 = ppO2 limit / ((depth in fsw / 33) + 1)

For a planned maximum of 100 feet, ambient pressure is 4.03 ata, so the richest mix at 1.4 is 1.4 divided by 4.03, which is 34.7 percent. In practice you round down to the fill you can actually get, so that dive runs on EAN32 with a small margin in hand rather than on a hypothetical EAN34.7. Rounding down is always the correct direction: it costs a little no-decompression time and buys back oxygen margin.

There is a second reason not to chase the richest legal mix. Your maximum depth on a real dive is rarely exactly what you planned. A photographer chasing a subject over a ledge, a current pushing you down a wall, or a simple misjudgement on a sloping bottom can all put you 10 or 15 feet deeper than intended. A mix chosen with 10 feet of margin absorbs that. A mix chosen at exactly the planned depth does not.

What does MOD not tell you?

A great deal, and this is where nitrox divers get caught out. Maximum operating depth is purely an oxygen calculation. Three other limits run alongside it and any of them can bind first:

• Nitrogen loading. Nitrox reduces it, but it does not remove it. Work out what your mix does to your no-stop time with the equivalent air depth calculator, and read the numbers off your own computer rather than a table.
• Gas supply. At 100 feet you consume gas four times as fast as at the surface, so a longer no-decompression limit frequently just means you run out of gas before you run out of table. The SAC rate calculator tells you which limit binds on your dive.
• Oxygen exposure over time. MOD governs the instantaneous partial pressure. Total exposure across a dive and across a day of repetitive dives is tracked separately, as the CNS clock, and your computer counts it for you. NOAA single-exposure limits run 45 minutes at 1.6, 150 minutes at 1.4 and 180 minutes at 1.3, which is why repetitive nitrox diving at the deep end of a mix is more constrained than one dive at the same depth.

Narcosis deserves its own line. Nitrox does not reduce it in any way that matters. The narcotic effect at depth is driven by nitrogen, and swapping 4 percent of the nitrogen for oxygen makes no practical difference to how you feel at 100 feet. Any claim that nitrox produces a clearer head at depth is describing better hydration and less carbon dioxide, not the mix.

What should you do if you exceed your MOD?

Ascend, immediately and under control, to a depth where the partial pressure is back inside the limit, and then continue the dive conservatively or end it. There is no procedure to follow at depth and no way to tell whether you have had a close call, because the absence of symptoms is not evidence of safety.

The more useful work happens afterwards. An exceeded MOD is almost never a single mistake; it is a planning chain that broke somewhere. Was the fill analysed? Was the computer set to the right fraction? Was the maximum depth agreed before the dive and written down? A wrist slate carrying the mix, the MOD and the turn pressure removes most of the ways this happens, and it costs less than a single boat dive.
